Deskripsi Produk
Pompa diafragma ganda yang beroperasi dengan udara merupakan pompa yang berpindah positif serbaguna, andal dan efisien, dirancang untuk menangani berbagai jenis fluida dari bahan kimia yang encer dan korosif hingga lumpur kental dan abrasif. Digerakan oleh udara bertekanan, pompa ini menawarkan pengoperasian yang aman dan dapat diandalkan bahkan di lingkungan yang dimana pompa Listrik tidak sesuai.
Technical Specifications

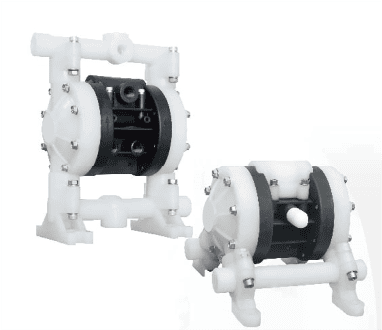

MQ06/10 Series Plastic Air Operated Diaphragm Pump
- Self-priming head: 0 – 1.5 m (dry) and 0 – 6.4 m (wet)
- Maximum flow: 27 l/min
- Maximum head: 70 m
- Maximum air supply pressure: 7 bar
- Weight:
- Polypropylene pump: 1.5 Kg
- PVDF pump: 2 Kg
MQ06/10 Series Aluminum Alloy Air Operated Diaphragm Pump
- Self-priming head: 0 – 1.5 m (dry) and 0 – 6.4 m (wet)
- Maximum flow: 27 l/min
- Maximum head: 70 m
- Maximum air supply pressure: 7 bar
- Weight: Aluminum Alloy Pump: 2 Kg
MQ06/10 Series Stainless Steel Air Operated Diaphragm Pump
- Self-priming head: 0 – 1.5 m (dry) and 0 – 6.4 m (wet)
- Maximum flow: 27 l/min
- Maximum head: 70 m
- Maximum air supply pressure: 7 bar
- Weight:
- 304 Stainless Steel Pump: 4 Kg
- 316 Stainless Steel Pump: 4 Kg

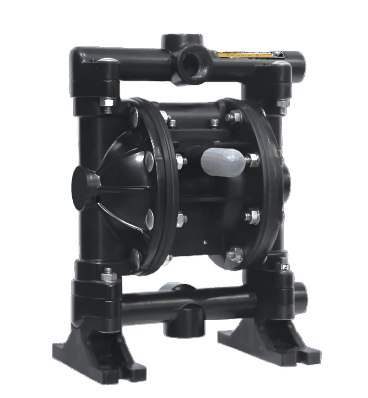

MQ15/20 Series Aluminum Alloy Air Operated Diaphragm Pump
- Self-priming head: 0 -4 m (dry) and 0 – 7.6 m (wet)
- Maximum flow: 57 l/min
- Maximum head: 70 m
- Maximum air supply pressure: 7 bar
- Weight: Aluminum Alloy Pump: 4.5 Kg
MQ15/20 Series Plastic Air Operated Diaphragm Pump
- Self-priming head: 0 – 4 m (dry) and 0 – 7.6 m (wet)
- Maximum flow: 57 l/min
- Maximum head: 70 m
- Maximum air supply pressure: 7 bar
- Weight:
- Polypropylene pump: 3.5 Kg
- PVDF pump: 4.5 Kg

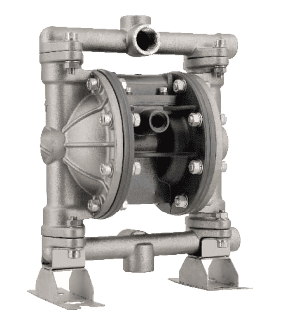

MQ15/20 Stainless Steel Air Operated Diaphragm Pump
- Self-priming head: 0 – 4 m (dry) and 0 – 7.6 m (wet)
- Maximum flow: 57 l/min
- Maximum head: 70 m
- Maximum air supply pressure: 7 bar
- Weight:
- 304 Stainless Steel Pump: 7.5 Kg
- 316 Stainless Steel Pump: 7.5 Kg

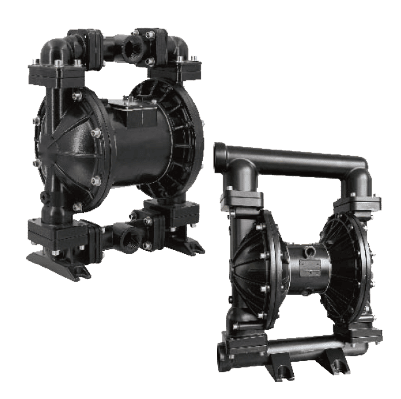

MQ25 Series Aluminum Alloy Air Operated Diaphragm Pump
- Self-priming head: 0 -4 m (dry) and 0 – 8 m (wet)
- Maximum flow: 157 l/min
- Maximum head: 84 m
- Maximum air supply pressure: 8.4 bar
- Weight: Aluminum Alloy Pump: 11 Kg

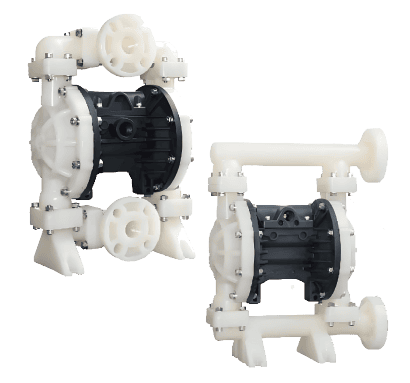

MQ25 Series Plastic Air Operated Diaphragm Pump
- Self-priming head: 0 -4 m (dry) and 0 – 8 m (wet)
- Maximum flow: 157 l/min
- Maximum head: 84 m
- Maximum air supply pressure: 8.4 bar
- Weight:
- Polypropylene Pump: 9 Kg
- Polyformaldehyde Pump: 10 Kg
- PVDF Pump: 12 Kg
MQ25 Series Stainless Steel Air Operated Diaphragm Pump
- Self-priming head: 0 -4 m (dry) and 0 – 8 m (wet)
- Maximum flow: 157 l/min
- Maximum head: 84 m
- Maximum air supply pressure: 8.4 bar
- Weight:
- Stainless Steel 304 pump Cast Iron pump: 16 Kg
- Stainless Steel 316 pump: 16 Kg

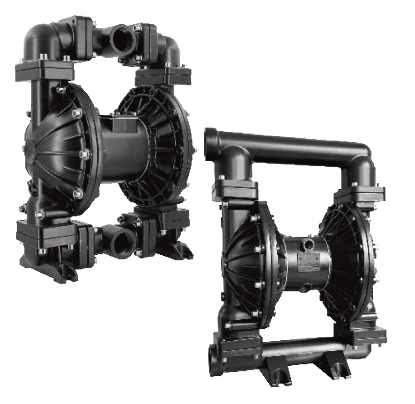

MQ40 Series Aluminum Alloy Air Operated Diaphragm Pump
- Self-priming head: 0 -5 m (dry) and 0 – 8 m (wet)
- Maximum flow: 358 l/min
- Maximum head: 84 m
- Maximum air supply pressure: 8.4 bar
- Weight: Aluminum Alloy Pump: 20 Kg

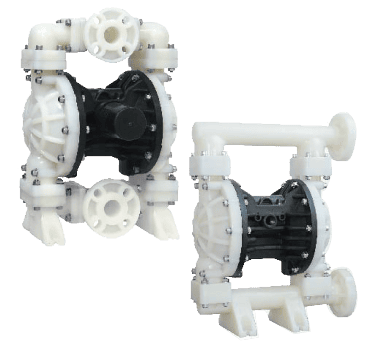

MQ40 Series Plastic Air Operated Diaphragm Pump
- Self-priming head: 0 – 5 m (dry) and 0 – 8 m (wet)
- Maximum flow: 358 l/min
- Maximum head: 84 m
- Maximum air supply pressure: 8.4 bar
- Weight:
- Polypropylene Pump: 17 Kg
- PVDF pump: 24 Kg
MQ40 Series Stainless Steel Air Operated Diaphragm Pump
- Self-priming head: 0 -5 m (dry) and 0 – 8 m (wet)
- Maximum flow: 358 l/min
- Maximum head: 84 m
- Maximum air supply pressure: 8.4 bar
- Weight:
- Stainless Steel 304 pump Cast Iron pump: 31 Kg
- Stainless Steel 316 pump: 31 Kg

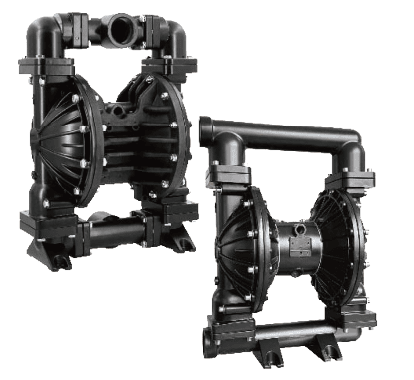

MQ50 Series Aluminum Alloy Air Operated Diaphragm Pump
- Self-priming head: 0 -5 m (dry) and 0 – 8 m (wet)
- Maximum flow: 587 l/min
- Maximum head: 84 m
- Maximum air supply pressure: 8.4 bar
- Weight: Aluminum Alloy Pump: 27 Kg

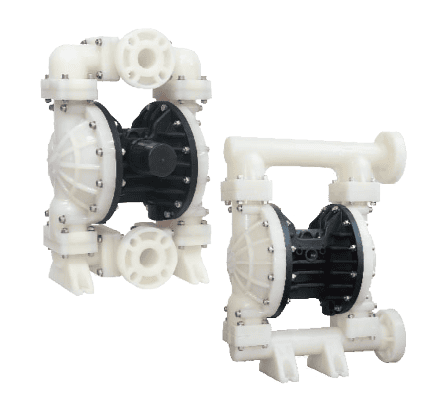

MQ50 Series Plastic Air Operated Diaphragm Pump
- Self-priming head: 0 – 5 m (dry) and 0 – 8 m (wet)
- Maximum flow: 587 l/min
- Maximum head: 84 m
- Maximum air supply pressure: 8.4 bar
- Weight:
- Polypropylene pump: 27 Kg
- PVDF pump: 34 Kg
MQ50 Stainless Steel Air Operated Diaphragm Pump
- Self-priming head: 0 – 5 m (dry) and 0 – 8 m (wet)
- Maximum flow: 587 l/min
- Maximum head: 84 m
- Maximum air supply pressure: 8.4 bar
- Weight:
- Stainless steel 304 pump: 48 Kg
- Stainless steel 316 pump: 48 Kg

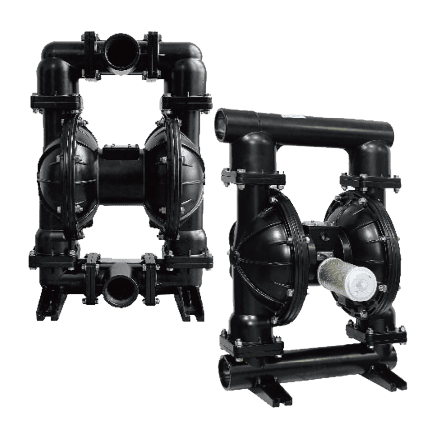

MQ80 Aluminum Alloy Air Operated Diaphragm Pump
- Self-priming head: 0 – 5 m (dry) and 0 – 8 m (wet)
- Maximum flow: 1060 l/min
- Maximum head: 84 m
- Maximum air supply pressure: 8.4 bar
- Weight: Aluminum Alloy Pump: 50 Kg

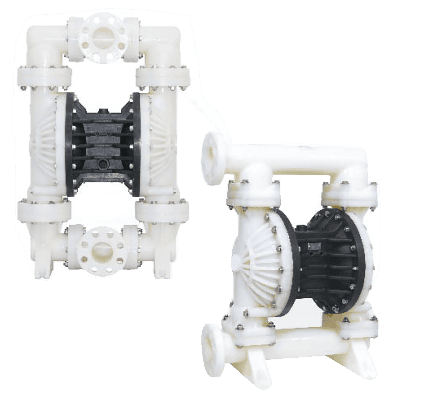

MQ80 Plastic Air Operated Diaphragm Pump
- Self-priming head: 0 – 5 m (dry) and 0 – 8 m (wet)
- Maximum flow: 1060 l/min
- Maximum head: 84 m
- Maximum air supply pressure: 8.4 bar
- Weight:
- Polyformaldehyde Pump: 50 Kg
- PVDF Pump: 90 Kg
MQ80 Stainless Steel Air Operated Diaphragm Pump
- Self-priming head: 0 – 5 m (dry) and 0 – 8 m (wet)
- Maximum flow: 1060 l/min
- Maximum head: 84 m
- Maximum air supply pressure: 8.4 bar
- Weight:
- 304 Stainless Steel pump: 120 Kg
- 316 Stainless Steel pump: 120 Kg
